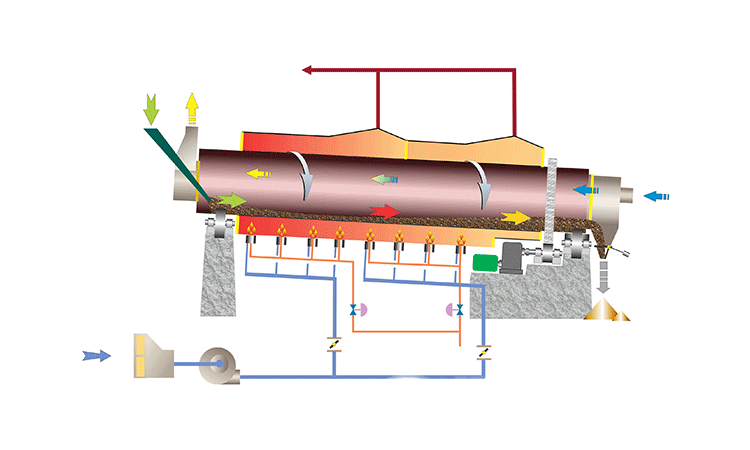

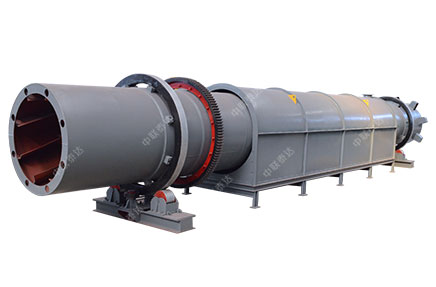

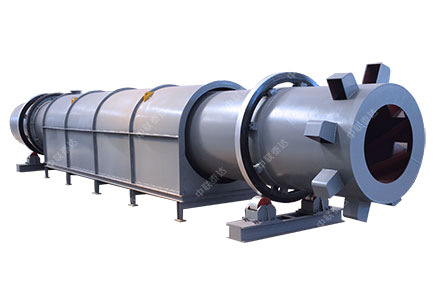

Single drum cooler is a component for temperature condition of rotary kiln. During operation, materials (1000 to 1200℃) from rotary kiln can exchange heat during drum rotation and temperature of calcined materials can be reduced to lower than 200℃. Meanwhile, quality and abrasion resistance of calcined materials get improved. After cooling materials, all air will enter kiln for secondary circulating so that to improve kiln working efficiency.
Application：Widely used in high hardness materials, non-metallic minerals, chemicals, food, medicine and metal materials.
Taeda single drum rotary cooler is easy to maintain and repair. All air after cooling materials will enter kiln as secondary circulating air, which improves kiln's working efficiency and calcining effect.

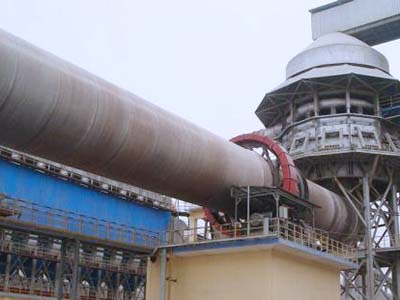

Jinan Lime Kiln Production Line
Attracted by lime rotary kiln manufactured by Zhengzhou Taida, Jinan customer purchased a whole set of lime rotary kiln calcining machine to fulfill final production aim.
Raw material: Lime
Output capacity：350t/d

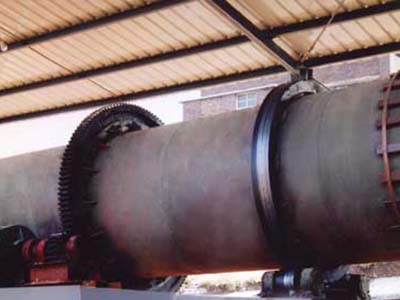

10TPH Russia Gypsum Production Site
Gypsum for is with high moisture. For guaranteeing smooth feeding, there is a certain inclination of feeding end for gypsum kiln. Whole line contains burner, rotary kiln and exhaust disposal.
Raw material：Phosphaste gypsum
Output capacity：1-10T/H
| Model | Capacity（t/h) | Rpm(r/min) | Motor | Power (kw) | Gearbox | Weight （t) |
TDLQ?1.2×12 | 1.9-2.5 | 4.5 | Y160L-6 | 11 | ZQ50 | 16 |
TDLQ?1.5×15 | 4-6 | 4.5 | Y200L1-6 | 18.5 | ZQ65 | 21.9 |
TDLQ?2×20 | 7-8 | 3.5 | Y225M-6 | 30 | ZL75 | 61 |
TDLQ?2.2×22 | 10-11.5 | 3.5 | Y225M-6 | 30 | ZL75 | 88 |
TDLQ?2.5×25 | 11-15 | 3.5 | Y280S-6 | 45 | ZL100 | 108 |
TDLQ?2.8×28 | 14-17 | 3.5 | Y280M1-6 | 55 | ZL100 | 130 |
TDLQ?3×30 | 16-20 | 3.5 | YS2-355M1-6 | 112 | ZL115 | 156 |
TDLQ?3.5×36 | 50-60 | 3.2 | YR315M1-6 | 132 | TH450C | 285 |
