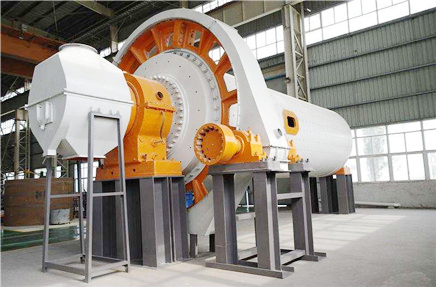

Active Carbon Grinding Machine

Active carbon grinding machine is pre-disposal equipment for active carbon before kneading and granulating. Before kneading, active carbon will be grinded into powder by active carbon grinding machine. Then, under function of coal tar and binder, powder will become into certain shape. Taeda active carbon grinding machine holds high capacity and good performance. Besides, cost for consumable components of active carbon grinding machine are cheap.

Application：Used to grind carbon and active carbon into powder.

Order online Hotline:18939509384

Advantage：

1、Active carbon grinding machine can grind active carbon particles to 200mesh or smaller powder so that to prepare for kneading, granulating and briquetting process.

2、Taeda active carbon grinding machine holds superiority in terms of capacity and efficiency than other grinding machine. Besides high working efficiency, Taeda active carbon grinding machine holds very long service life.

3、Owing to new structure, Taeda active carbon grinding machine holds stable performance and low electricity consumption. It can be used for both batch production and continuous production work.

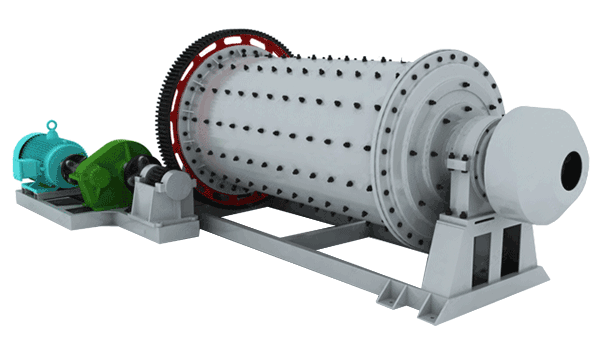

Working principle：

Delivery display：

Project case：

Azerbaijian Carbonization System

This project takes fruit kernel as raw material to produce shisha. Carbon content of product is over 95%. Whole system contains dryer, carbonization, cooling, crushing and briquetting.

Raw material: fruit kernel
Capacity：1t/h
Peru Gold Active Carbon Activation

Gold ore holds strict requirement for Methylene blue value and Iodine value. Peru project adopts steam physical activation method and realizes self-sufficient ideal situation.

Raw material: coconut shell carbon
Capacity：5t/d

Working parameter：

Model	Rpm r/min	Loading amount t	Feeding size mm	Output size mm	Capacity t/h	Motor power kw	Weight t
Φ900×1800	38	1.5	20	0.075-0.89	0.65-2	18.5	3.6
Φ900×2100	38	2.7	≤20	0.075-0.83	0.7-3.5	22	3.9
Φ900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.5
Φ1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	11.5
Φ1200×4500	32	7	≤25	0.074-0.4	1.6-5.8	55	13.8
Φ1500×3000	27	8	≤25	0.074-0.4	44232	90	17
Φ1500×4500	27	14	≤25	0.074-0.4	44262	110	21
Φ1500×5700	27	15	≤25	0.074-0.4	3.5-8	132	24.7
Φ1830×3000	24	18	≤25	0.074-0.4	44296	180	28
Φ1830×7000	24	25	≤25	0.074-0.4	7.5-17	245	36
Φ2200×5500	21	30	≤25	0.074-0.4	44491	370	48.5
Φ2200×6500	21	31	≤25	0.074-0.4	14-26	380	52.8
Φ2200×7500	21	33	≤25	0.074-0.4	16-29	380	56
Φ2400×4500	21	30	≤25	0.074-0.4	8.5-60	320	65
Φ2700×3600	20.6	39	≤25	0.074-0.4	12-70	400	91.3
Φ2700×4000	20.7	40	≤25	0.074-0.4	12-80	400	94
Φ2700×4500	20.7	48	≤25	0.074-0.4	12-90	430	102
Φ3200×4500	18	65	≤25	0.074-0.4	12-100	800	137
Φ3600×4500	17	90	≤25	0.074-0.4	According to process	850	158
Φ3600×6000	17	110	≤25	0.074-0.4	According to process	1250	175
